SKANWEAR® Arc Waterproof Smock (CL.2/ARC2/22CAL/CM²)

$798.00 USD
#TS962V
Color
Size guide SKANWEAR® Arc Waterproof Smock (CL.2/ARC2/22CAL/CM²)
JIMMY SIZE GUIDE
STANDARD SIZING GUIDE

When purchasing Arc Flash Protective Clothing online it is imperative to make sure you are measuring your size correctly. Note that sizing is not always the same as high street clothing brands.

  • Please request assistance from another person when taking your measurements.
  • Measure over light clothing as thicker clothing can increase measurements.
  • Remove any items from your pockets before taking measurements.
  • Measure with the tape measure flat against the body.
  • Do not hold the tape measure too tightly.
  • Please choose the correct size based on your largest measurement: Chest or Waist.

Measuring Guidelines

Follow these simple steps to ensure your Arc Flash Protective Clothing will fit.

1. Request assistance from another person when taking your measurements.

2. Take measurements over light clothing as thicker clothing can add to measurements.

3. Remove any items from your pockets before taking measurements.

4. Measure with the tape measure flat against the body.

5. Do not hold the tape measure too tightly.

How to measure (Mens)

Height: Height is measured bare foot from the top of the head to the floor.

Chest: Measure chest circumference around fullest part, keeping the tape level under the arms and across the back.

Trouser Waist: Measure around your body at the position you wear your trousers.

Inside Leg: Measure from crotch down to ankle bone.

How to measure (Ladies)

Height: Height is measured bare foot from the top of the head to the floor.

Chest: Measure chest circumference around fullest part, keeping the tape level under the arms and across the back.

Hips: Keeping the tape parallel to the floor, measure around the widest part of the hips.

Trouser Waist: Measure around your body at the position you wear your trousers.

Inside Leg: Measure from crotch down to ankle bone.

How to measure Gloves
How to measure Shoes

How to measure your chest size

How to measure your waist size

How to measure your oversleeve

How to measure your inside leg seam

How to measure your height

Once you have your correct measurements, it's time to choose your Arc Flash PPE

Size
Choose options

Secure online payment

Description

Description

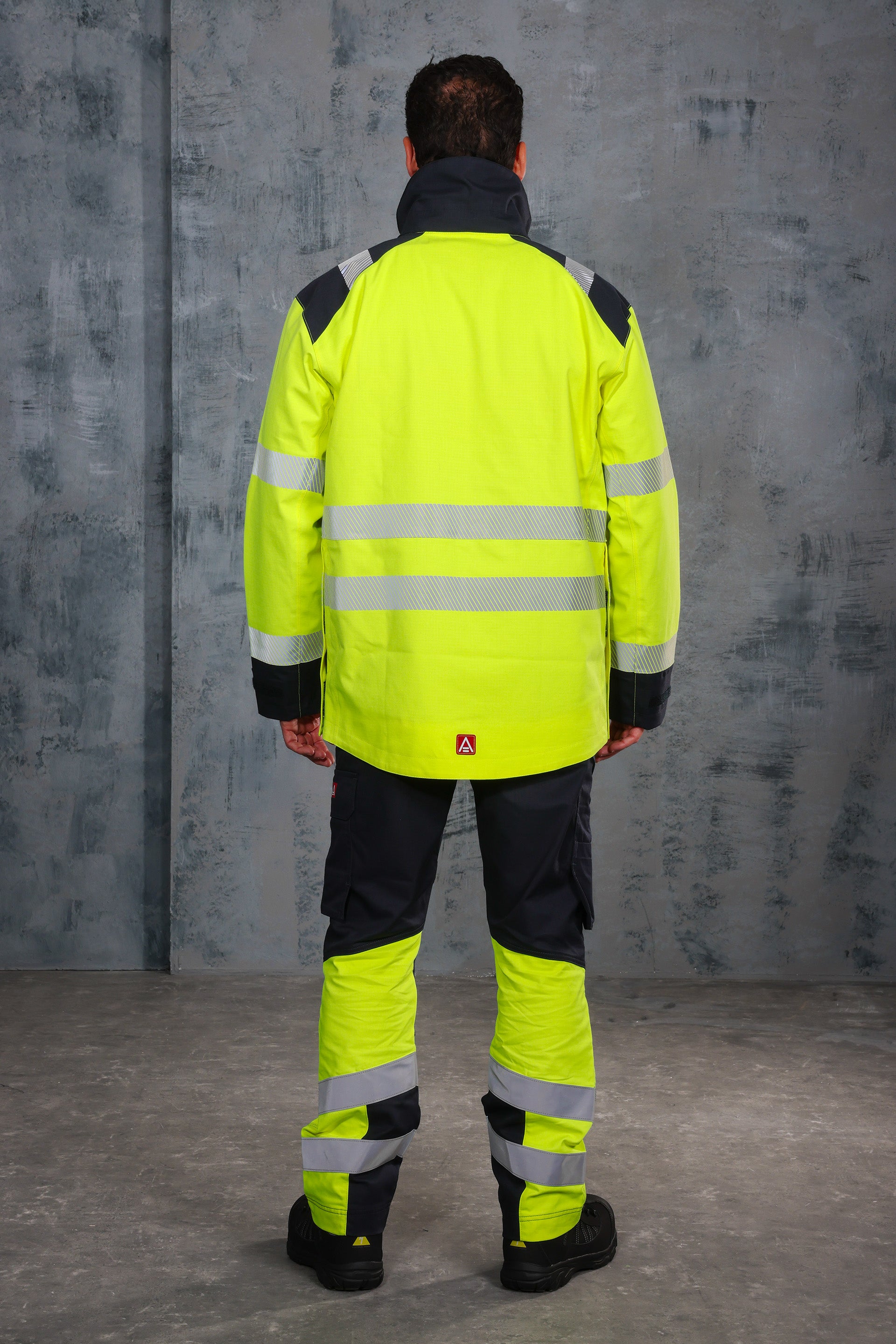

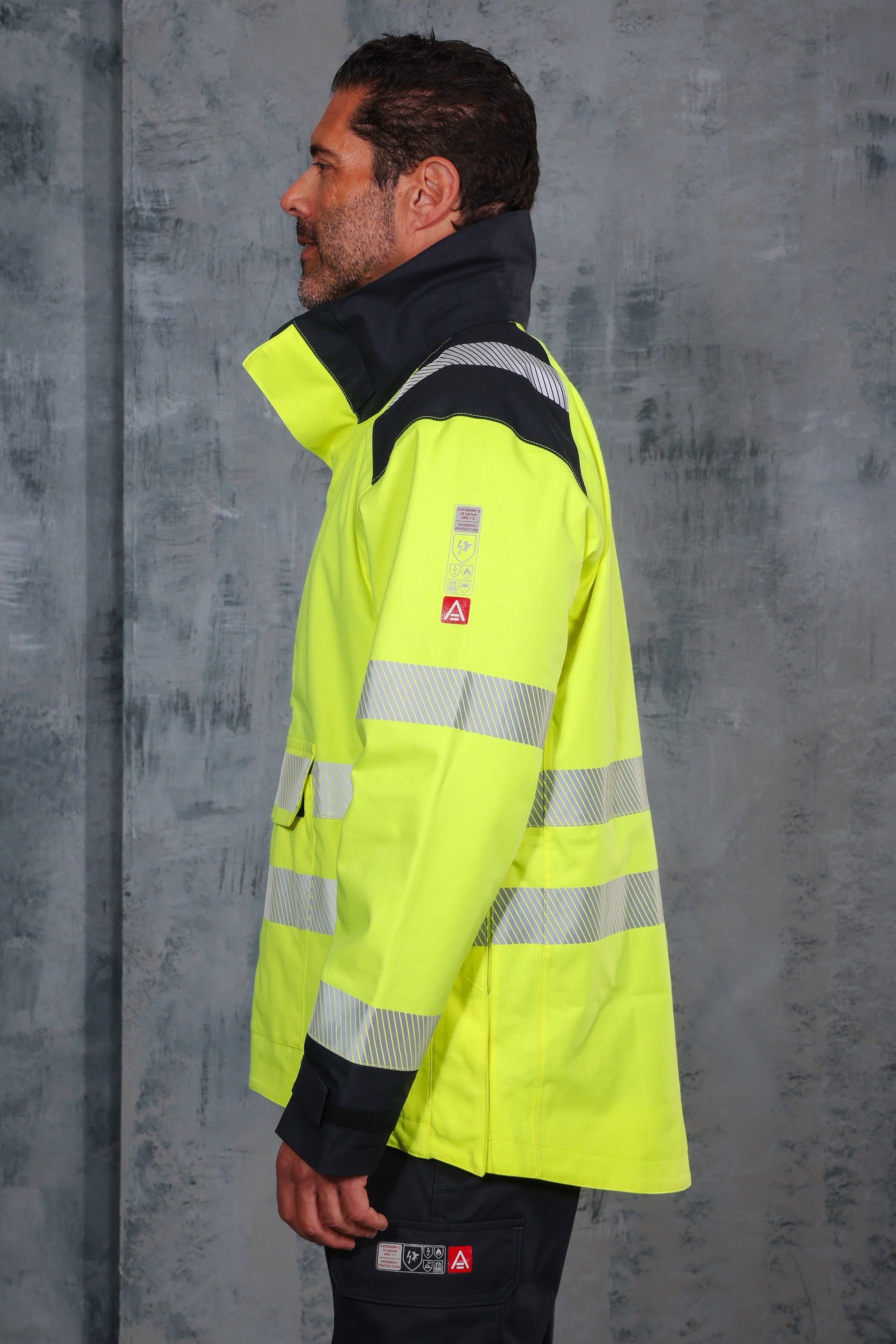

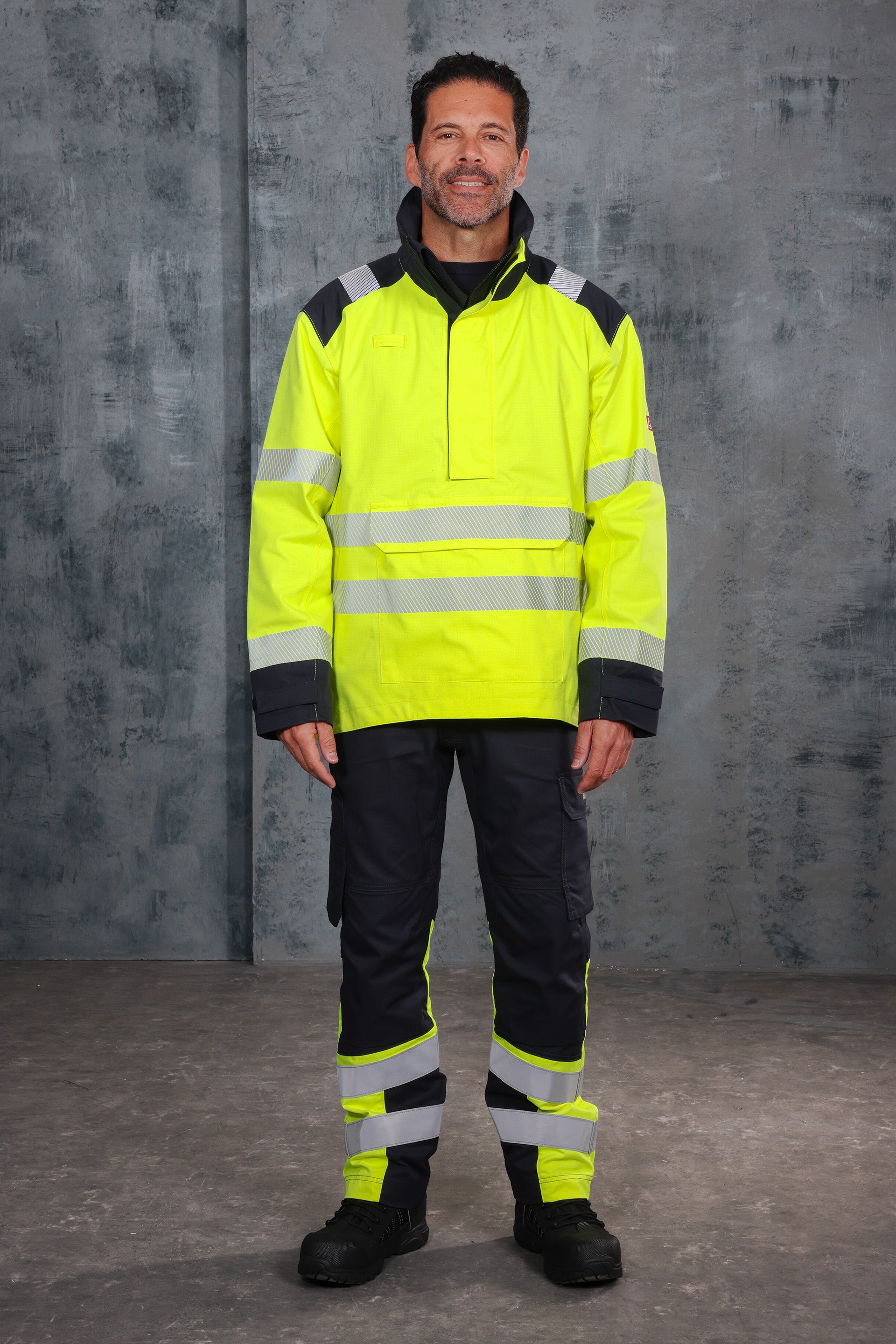

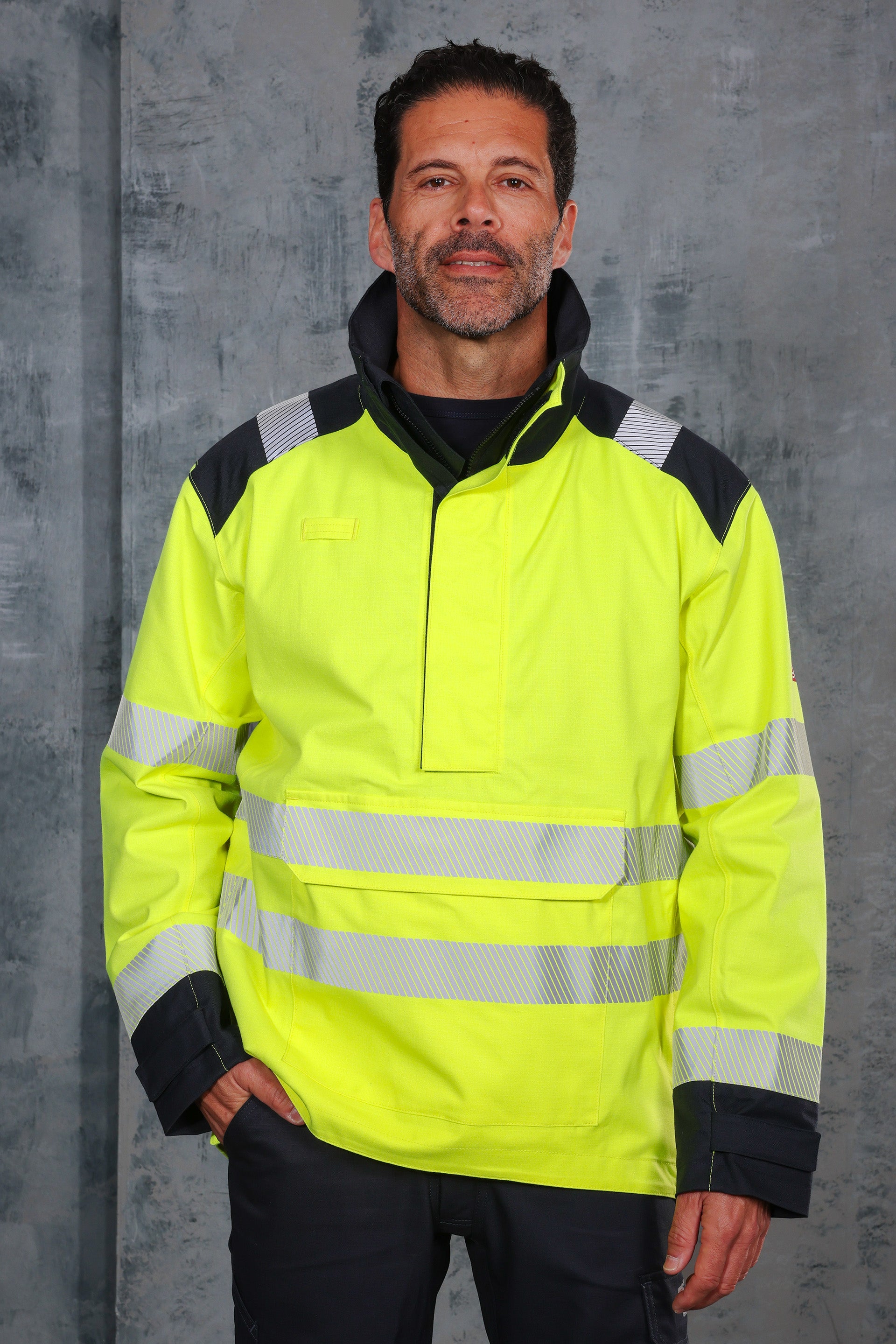

SKANWEAR® Arc Waterproof Smock (CL.2/ARC2/22CAL/CM²)

The SKANWEAR® Arc Waterproof Smock delivers reliable, long-lasting protection for engineers working in high-risk environments. Constructed with 100% inherent arc flash and flame-resistant fibres, the garment’s protective qualities are permanently built into the fabric—ensuring consistent safety performance throughout its lifespan without degradation from washing or wear.

Designed with practicality and comfort in mind, it features Easi-Arm™ gusset technology for enhanced freedom of movement, alongside a weather-ready construction that includes a storm guard front, hood attachment option, and water-resistant design. Functional storage, adjustable fittings, and high-visibility segmented reflective tape further support performance on site, making this smock a dependable choice for demanding, all-weather conditions.

  • 100% Inherent Arc FR Protection
    The FR protection is woven into the fabric meaning it is permanent. No matter how many times the garment is worn or washed, the protection level always remains. This results in peace of mind knowing all SKANWEAR® garments will keep engineers safe for the life of the garment and it saves you money reducing the cost per use by not having to keep replacing garments after their chemical protection is washed out.
  • Easi-Arm™ Gusset Technology
    The added underarm panel has been fitted and developed to give greater freedom of movement through the sleeve and shoulder for working overhead and on the ground without exposing any skin.
  • Weather-Ready Protection & Practical Design
    Open collar shaping with a dedicated hood attachment area (featuring poppers) allows for adaptable coverage in changing conditions. A centre front half storm guard with concealed zip and Velcro fastening provides reliable protection against wind and rain, while angled front and back yokes enhance fit and durability in demanding environments.
  • Enhanced Comfort & Mobility

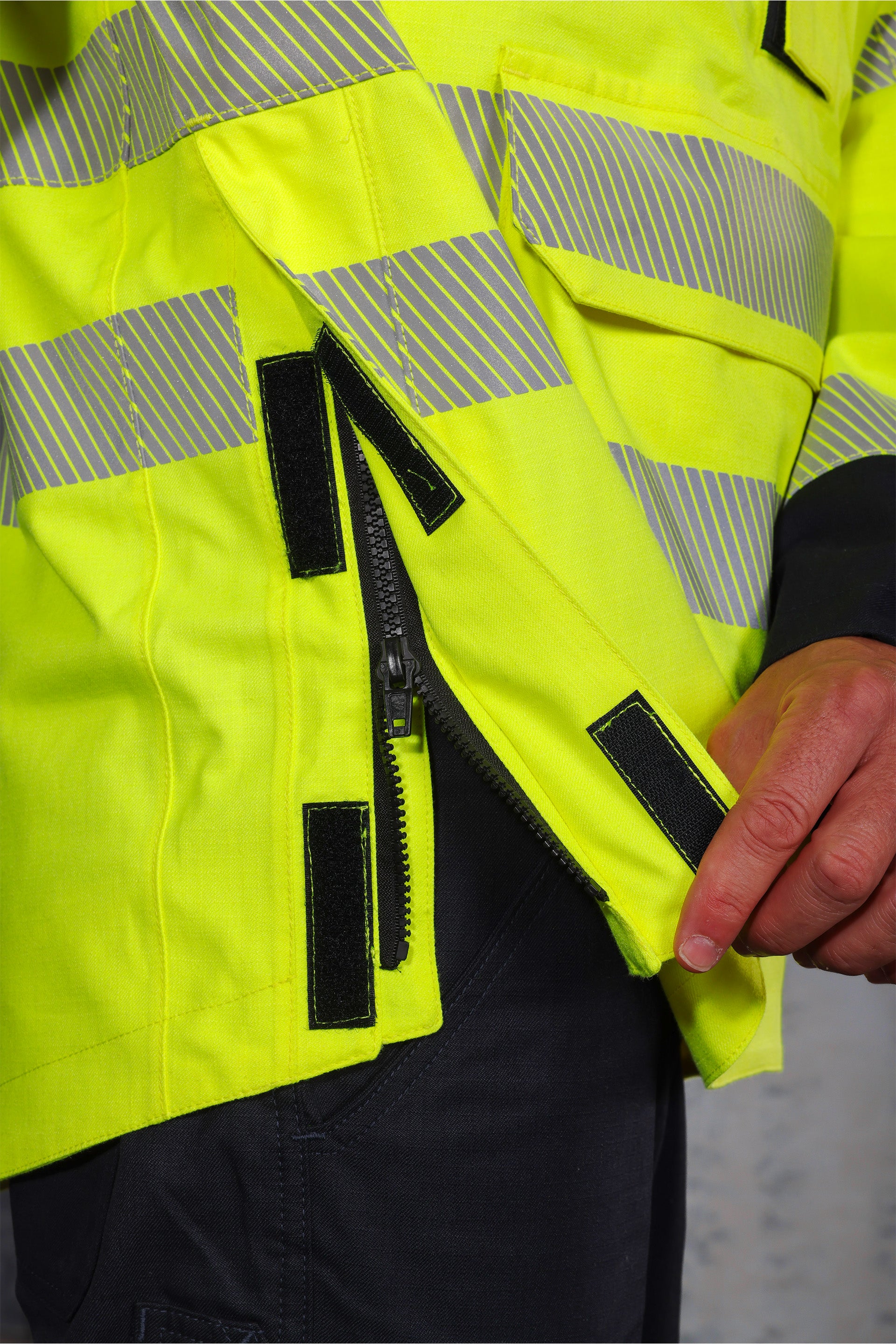

    Set-in sleeves with underarm gussets ensure unrestricted movement, making the smock ideal for active, high-risk tasks. Side seam zip openings from hem to waist offer additional flexibility, ventilation, and ease of wear—particularly useful when layering over other protective garments.
  • Secure & Accessible Storage

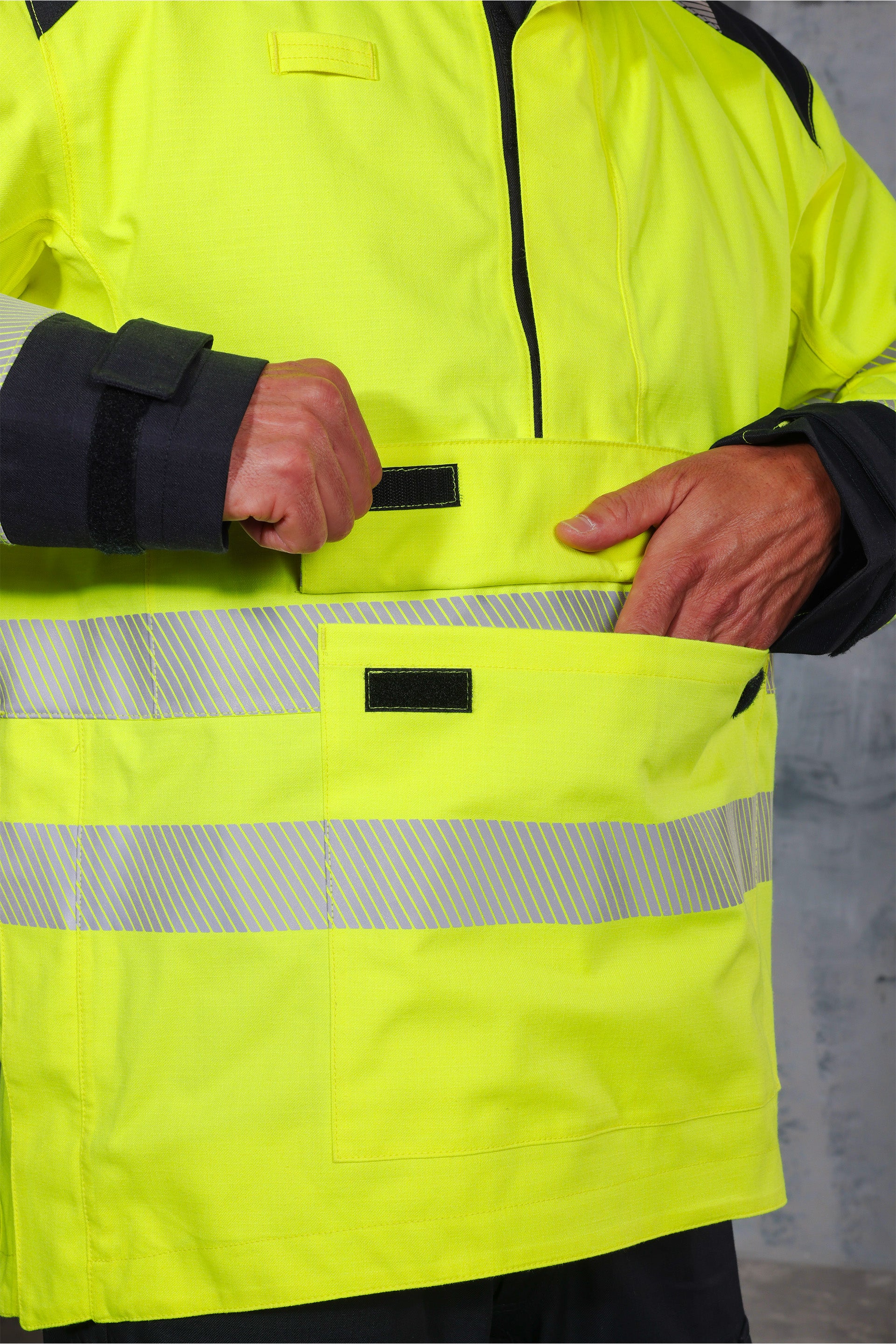

    A practical patch pocket at the waist with Velcro fastening keeps essential items close to hand, complemented by side zip pockets with durable 2-ply lining for added security. A self-fabric radio loop ensures communication devices are always within easy reach on site.
  • Adjustable Fit & Visibility
    Adjustable cuff tabs with Velcro fastening allow for a secure, customised fit that helps seal out the elements. 50mm segmented reflective tape across the sleeves, body, and yokes enhances visibility while maintaining flexibility and comfort during movement.

Technical Specification

ATPV = 22cal/cm2, ELIM = 18cal/cm2 & APC = 2
Class 2 Category 2
100% Inherent

Composition

  • Inherent Fabric:

    44% Modacrylic, 30% Cotton, 20% Polyamide FR, 5% Para - Aramid, 1% Antistatic Fiber (HV Yellow/Navy)
    Liner; 50% Meta-aramid, 45% Lenzing ™ FR, 5% Para - Aramid (Grey)

  • Weight: 305 g/m²

Standards

  • EN 61482-2:2020 ATPV = 22cal/cm2, ELIM = 18cal/cm2 & APC = 2
  • EN 1149-5:2018 (Electrostatic Discharge)
  • EN ISO 20471:2013+A1:2016 (Class 2 for size XS-S, Class 3 M upwards) (Class 2 when worn with TS9H2X)
  • EN ISO 11612:2015 A1 B1 C1 F1 (Heat & Limited Flame Spread)
  • EN 343:2019 Class 4 (Resistance to Water Penetration)
  • EN 343:2019 Class 3 (Resistance to Water Vapour)
  • EN ISO 13688:2013 (General Performance)
  • NFPA70E Compliant
Technical

Technical

Arc Category: HRC 2 / CAT 2 / ARC 2

Arc Class: Class 2

Cal Rating: 8 – 24 Cal/cm²

Certifications:

Technical Specification:

ATPV = 22cal/cm2, ELIM = 18cal/cm2 & APC = 2
Class 2 Category 3
100% Inherent

Composition

  • Inherent Fabric:
    44% Modacrylic, 30% Cotton, 20% Polyamide FR, 5% Para - Aramid, 1% Antistatic Fiber (HV Yellow/Navy)
    Liner; 50% Meta-aramid, 45% Lenzing ™ FR, 5% Para - Aramid (Grey)
  • Weight: 305 g/m²

Standards

  • EN 61482-2:2020 ATPV = 22cal/cm2, ELIM = 18cal/cm2 & APC = 2
  • EN 1149-5:2018 (Electrostatic Discharge)
  • EN ISO 20471:2013+A1:2016 (Class 2 for size XS-S, Class 3 M upwards) (Class 2 when worn with TS9H2X)
  • EN ISO 11612:2015 A1 B1 C1 F1 (Heat & Limited Flame Spread)
  • EN 343:2019 Class 4 (Resistance to Water Penetration)
  • EN 343:2019 Class 3 (Resistance to Water Vapour)
  • EN ISO 13688:2013 (General Performance)
  • NFPA70E Compliant
Wash Care

Wash Care

  • Wash at 40C/104F
  • Do not bleach
  • Dry Clean with Petroleum solvent
    only
  • Medium iron on reverse
  • Dry on warm medium setting
  • Clean with all closures fastened
