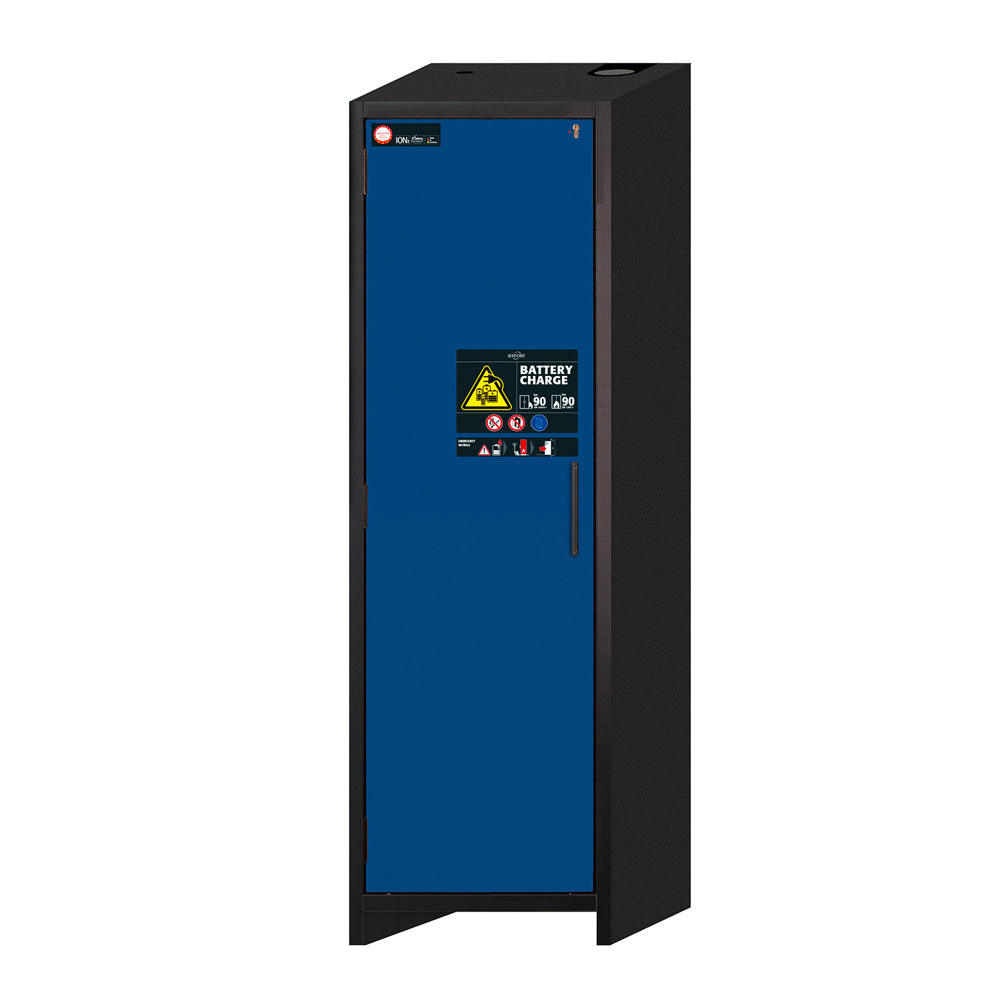

Battery Charge charging cabinet ION-CHARGE-90
Battery Charge charging cabinet ION-CHARGE-90
Roll over image to zoom in
Battery Charge charging cabinet ION-CHARGE-90
Battery Charge charging cabinet ION-CHARGE-90

Battery Charge charging cabinet ION-CHARGE-90


SKU: SWT069
Price:
£5,175

 ex VAT

Stock:
In stock, ready to be shipped

Title

Title

Title

Title

Title

Title

Title

Title

  • Type 90 Safety storage cabinet
  • Free standing unit with self-closing wing doors (left hinged)
  • With cylinder locking and locking state indicator
  • Version K9 - Model BATTERY CHARGE: with warning system
  • Integrated adjusting aids to compensate uneven floor
  • Model line ION-LINE
  • Model class ION-CHARGE-90
  • Model IO90.195.060.K9.WDC
  • Type tested in accordance with EN 14470-1
  • CE compliant
  • Dimensions exterior: W x D x H (mm) 599 x 615 x 1953
  • Dimensions interior: W x D x H (mm) 450 x 522 x 1647

Interior equipment with

  • 4 x perforated shelf as storage level, load capacity: 25 kg, sheet steel powder-coated, RAL 7035 Light grey
  • 1 x socket strip (a total of 2 units, UK version)
  • 1 x bottom collecting sump, capacity: 12 litres, sheet steel powder-coated, RAL 7035 Light grey
External dimensions W x D x H 599 x 615 x 1953 mm
Internal dimensions W x D x H 450 x 522 x 1647 mm
Net weight configuration 292.00 kg
Distributed load 894 kg/m²
Maximum load 600 kg
Entry width transport base 526 mm
Entry height transport base 90 mm
Power consumption in operation 47,5 W
Nominal voltage 230 V
Fuse (1-phase) 13 A
Power max. (1-phase) 2,99 kW
Fuse (3-phase) 3 x 13 A
Power max. (3-phase) 5,98 kW
Max. load of shelves 25.00 kg
Capacity of bottom collecting sump 11.50 litres
ecl@ss 10.0 40-06-01-90
ecl@ss 11.0 40-06-01-90
ecl@ss 5.1.4 21-10-04-07
ecl@ss 9.1 40-06-01-90
Fuse (3-phase) 2 x 13 A
Power max. (2-phase) 5,98 kW
ecl@ss 8.1 40-06-01-90
